Product Overview
OS&Y (Outside Screw and Yoke) Rising Stem Gate Valves are engineered for heavy-duty on/off isolation in high-pressure steam, oil, gas, and chemical lines. By keeping the stem threads outside the flow passage, the operating mechanism is completely isolated from process fluid corrosion and debris accumulation.
The visible rising stem provides immediate visual verification of valve position from a distance, satisfying core safety requirements for refineries, power plants, and industrial piping headers.
Key Features of OS&Y Rising Stem Gate Valve
Visual Stem Position Indicator
The rising stem provides instant line-of-sight verification of open/closed valve status.
Protected External Stem Threads
Operating threads remain outside the fluid path to prevent medium-induced corrosion and thread seizing.
Low-Pressure-Drop Isolation
Full-port straight-through design ensures maximum flow efficiency with minimal turbulence.
Customized Metallurgies and Trims
Body and seating materials are matched to precise temperature, pressure, and fluid chemistry.
Flanged and Welded Connections
Manufactured to international face-to-face and end connection dimensions for drop-in replacement.
Certified Pressure Testing
Every valve undergoes hydrostatic and shell testing with mill certificates provided per order.
Working Principle
An OS&Y rising stem gate valve controls line flow by moving a wedge gate vertically across the internal fluid path.
Turning the handwheel rotates the external yoke nut, driving the non-rotating stem upward or downward. When opened, the stem lifts the wedge completely out of the flow stream, creating a straight path with negligible flow resistance.
When closed, the stem forces the wedge down into the valve body seats to form a tight, leak-proof seal. Because the stem threads remain outside the fluid chamber, they can be inspected and lubricated during routine operation without interrupting flow.
Main Construction and Components
|
Component |
Function / Description |
|
Body |
Pressure-retaining shell housing internal flow passages |
|
Bonnet |
Bolted cap that seals the body and supports the yoke assembly |
|
Gate / Wedge |
Precision-machined element providing primary bi-directional sealing |
|
Stem |
High-tensile linear shaft driving wedge movement |
|
Yoke |
Rigid upper frame holding the operating mechanism |
|
Stem Nut |
Wear-resistant bronze nut converting handwheel rotation into linear travel |
|
Seat Rings |
Hardfaced or resilient surfaces providing the critical sealing interface |
|
Packing |
Multi-ring graphite or PTFE barrier preventing stem leakage |
|
Gland Flange |
Adjustable follower maintaining proper packing compression |
|
Handwheel |
Manual actuator for smooth operational torque |
|
Bonnet Bolting |
High-strength alloy studs maintaining joint integrity |
|
Gasket |
Spiral-wound or metallic ring gasket sealing body-bonnet joint |
Technical Specifications
|
Parameter |
Standard Capability |
|
Size Range |
DN50 – DN1200 (2 inches – 48 inches) |
|
Pressure Ratings |
Class 150 to Class 2500 / PN10 to PN420 |
|
Design Standards |
API 600, API 6D, ASME B16.34, DIN 3352 |
|
Face-to-Face |
ASME B16.10, EN 558-1, ISO 5752 |
|
End Connections |
Flanged (RF, RTJ), Butt-Weld (BW) |
|
Testing Standards |
API 598, EN 12266-1 |
Material Options
Primary Cast Body Materials

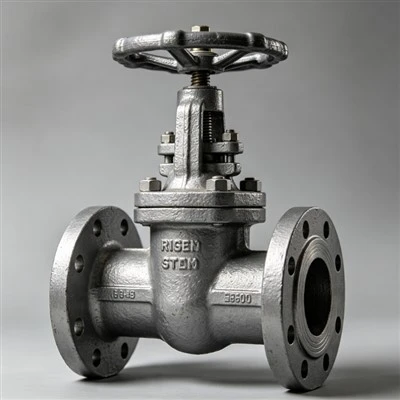

• Carbon Steel (WCB, LCB, LCC): Standard option for non-corrosive oil, gas, steam, and utility water lines.

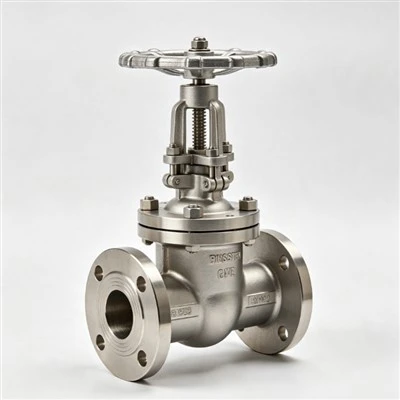

• Stainless Steel (CF8, CF8M, CF3, CF3M): Highly resistant to corrosive chemicals, acids, and marine environments.
• Alloy Steel (WC6, WC9, C5): Engineered for elevated temperature steam power plants and refining units.
• Duplex Stainless Steel (2205, 2507): Exceptional pitting and stress-corrosion resistance in harsh offshore service.
Sealing & Trim Materials
• API Trim Configurations: Trim 1 to Trim 18 with 13Cr, Stellite, or 316 overlay facing.
• Stem Packing: High-density flexible graphite with anti-corrosion inhibitors or expanded PTFE.
End Connection Options
Flanged Ends
Built to ASME B16.5 or EN 1092-1 to enable straightforward pipe installation and routine maintenance without cutting line segments.
Butt-Welding Ends
Manufactured to ASME B16.25 for high-pressure, leak-critical pipelines requiring permanent welded joints.
Typical Applications of OS&Y Rising Stem Gate Valve
Refining and Petrochemical
High-reliability isolation across crude headers, distillation units, and storage tank farms.
01
Power Generation
Critical shut-off for high-pressure steam distribution, boiler feedwater, and condensate loops.
02
Oil and Gas Pipelines
On/off line control for upstream production manifolds and midstream transport stations.
03
Industrial Utilities
Heavy-duty water and utility isolation in steel mills, pulp mills, and chemical processing plants.
04
Fire Protection Lines
Standard visual isolation valves for main fire loops, sprinkler headers, and safety systems.
05
OS&Y Rising Stem vs. Non-Rising Stem (NRS) Valves
|
Feature |
OS&Y Rising Stem |
Non-Rising Stem (NRS) |
|
Stem Movement |
Stem extends outward when opening |
Stem rotates internally without vertical travel |
|
Status Verification |
Direct visual confirmation from a distance |
Requires external mechanical indicators |
|
Thread Environment |
External threads protected from fluid corrosion |
Internal threads exposed directly to line media |
|
Space Required |
Requires vertical clearance for rising stem |
Compact profile suitable for underground/tight spaces |
|
Thread Maintenance |
External stem accessible for lubrication |
Requires system shutdown to inspect stem threads |
FAQ
Q: What does OS&Y stand for in valve engineering?
A: OS&Y stands for Outside Screw and Yoke. It describes a design where the stem threads remain outside the fluid-wetted chamber, protecting operating components from internal line fluid.
Q: Why are OS&Y gate valves preferred for safety-critical pipelines?
A: The external rising stem acts as a physical position indicator. Operators can instantly visually confirm whether a line is fully open, fully closed, or isolated without manual testing.
Q: Can an OS&Y Gate Valve be used for flow throttling?
A: No. Gate valves are designed strictly for full-open or full-closed service. Operating in a partially open position causes seat erosion and severe vibration due to turbulent fluid flow.
Q: Are these gate valves available fully certified to API 600?
A: Yes. Valves can be configured, manufactured, and documented to comply fully with API 600 requirements including wall thickness, stem diameter, and packing design.
Q: What details are required to receive an accurate technical quote?
A: Please specify valve size (NPS/DN), pressure rating (Class/PN), body and trim materials, end connection type, operating temperature, fluid medium, and applicable design standards.
