Product Overview

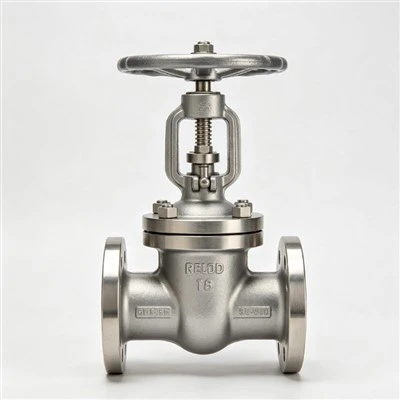

The Rising Stem Flanged Gate Valve features an outside screw and yoke (OS&Y) design that moves the stem vertically during operation, providing field operators with instant visual verification of valve position. Built with standardized flanged ends and a full-bore passage, it ensures minimal pressure drop and maximum flow efficiency. Engineered for full-open or full-closed isolation service, this valve delivers dependable sealing and long-term durability across municipal, commercial, and industrial fluid networks.
Key Features of Rising Stem Flanged Gate Valve
Visual Position Indication
External rising stem enables immediate visual verification of valve status.
Flanged Pipe Connection
Standardized flanged ends ensure leak-tight integration and simple pipeline maintenance.
Full-Bore Flow Efficiency
Retractable gate design allows unobstructed flow with minimal pressure loss.
Versatile Material Selection
Available in ductile iron, carbon steel, and stainless steel for diverse media and pressures.
Flexible Drive Options
Operated via handwheel, gearbox, or automated electric and pneumatic actuators.
Global Standard Compliance
Drilled and manufactured to match ANSI, DIN, BS, and JIS piping standards.
Technical Specifications
|
Parameter |
Standard Options |
|
Nominal Size |
DN50 – DN1200 (2" – 48") |
|
Pressure Class |
PN10, PN16, PN25, Class 150, Class 300 |
|
Design Standards |
API 600, API 6D, DIN 3352, BS 5163, EN 1171 |
|
Flange Standards |
EN 1092-2, ANSI B16.5, BS 4504, JIS B2220 |
|
Body / Bonnet |
Ductile Iron (GGG40/GGG50), Carbon Steel (WCB), Stainless Steel (CF8/CF8M) |
|
Sealing Type |
Resilient Seated (EPDM/NBR) or Metal Seated (Stainless Steel/Bronze) |
|
Actuation |
Handwheel, Bevel Gearbox, Electric Actuator, Pneumatic Actuator |
|
Temperature Range |
Resilient: -10°C to +80°C |
Construction & Main Components
Valve Body: Pressure-retaining full-port shell with integrated mounting flanges.
Bonnet: Removable top housing containing stem packing and gland assembly.
Gate / Wedge: Vertical shut-off element providing bi-directional sealing.
Rising Stem: Precision-threaded shaft transferring actuator movement to the gate.
Seat Ring: Machined sealing area ensuring tight closure against the wedge.
Stem Packing: Multi-ring sealing arrangement preventing external media leakage.
Handwheel / Operator: Manual wheel or gear drive delivering operational force.
Key Applications of Rising Stem Flanged Gate Valve
Water Supply & Municipal Distribution
Provides main-line isolation for water treatment and pumping infrastructure.
Wastewater Treatment
Delivers durable shut-off control for raw sewage and sludge lines.
Industrial Process Piping
Serves utility loops and cooling networks requiring reliable on/off control.
Pump Stations
Installed around pumps to facilitate safe maintenance and system isolation.
HVAC Systems
Regulates closed-loop chilled and hot water distribution in commercial buildings.
Fire Protection Networks
Utilized in fire main supply lines requiring visual position check.
Gate Valve vs. Alternative Valve Types
|
Valve Type |
Primary Function |
Core Advantage |
|
Rising Stem Gate Valve |
On/Off Isolation |
Visual stem position check with straight-through flow |
|
Butterfly Valve |
Isolation / Basic Control |
Compact face-to-face length and lower overall weight |
|
Globe Valve |
Precision Flow Control |
Superior throttling accuracy and fine flow adjustment |
|
Ball Valve |
Quick On/Off Isolation |
Fast quarter-turn operation with tight sealing |
|
Check Valve |
Backflow Prevention |
Automatic operation driven solely by line pressure |
Seating Technology: Resilient vs. Metal Seated
Resilient Seated Gate Valves
Utilizes an EPDM or NBR rubber-encapsulated wedge to achieve zero-leakage compression sealing. Prevents bottom debris accumulation, making it ideal for clean water, municipal distribution, and HVAC services.
Metal Seated Gate Valves
Features precision-ground metallic seats (Bronze or Stainless Steel). Engineered for high temperatures, abrasive media, and severe industrial conditions where elastomeric seals fail.
Engineering & Installation Guidelines
Match valve pressure rating, flange drilling, and materials to system specs before installation.
Ensure mating flanges are clean and parallel; never force misaligned pipes together using flange bolts.
Allow adequate vertical space above the bonnet for full stem travel and actuator access.
Cycle the valve manually from full-open to full-closed before pressuring the line.
Global Logistics & Export Packaging
Flange Face Protection: Heavy-duty covers fitted to preserve machining surfaces during transit.
Anti-Corrosion Treatment: Machined stems and bare metal coated with protective anti-rust film.
Standard Export Crates: Packed into fumigated wooden cases or reinforced pallets structured for safe forklift loading.
Custom Shipping Marks: Clear labeling of size, pressure, heat numbers, and project tags for jobsite identification.
FAQ
Q: What is the difference between a rising stem and non-rising stem gate valve?
A: Rising stem valves extend the stem upward when opening to give visual position indication. Non-rising stem valves keep the stem inside the body, making them suitable for underground or space-restricted installations.
Q: Can a rising stem gate valve be used for flow throttling?
A: No. Gate valves are designed strictly for full-open or full-closed service. Operating in a partially open position causes fluid turbulence and severe seat erosion.
Q: Can valves be customized for specific project standards?
A: Yes. Custom options include specialized flange drilling, fusion-bonded epoxy coatings, ISO 5211 actuator flanges, extended stems, and material test certificates.
