Description

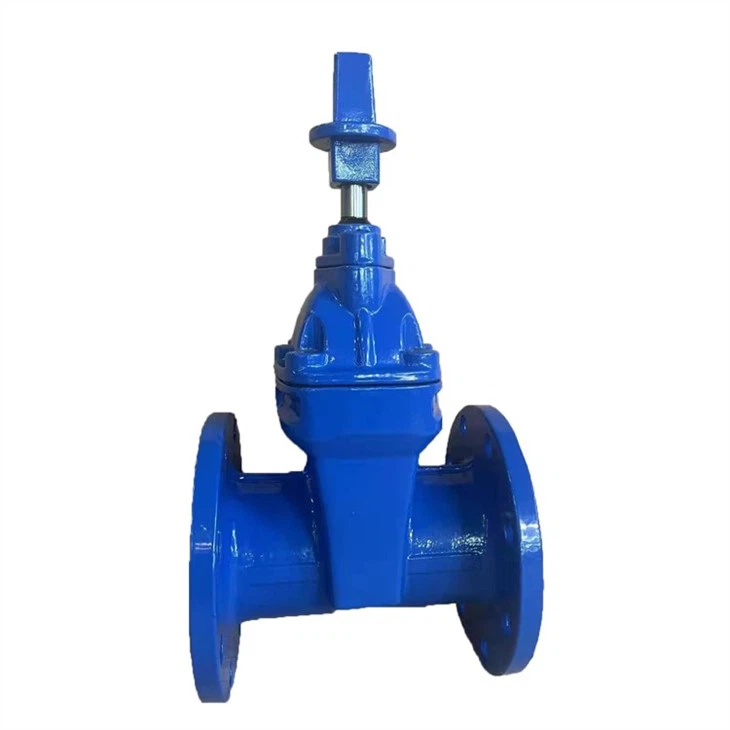

Non Rising Stem Resilient Gate Valve is widely used in the various pipelines of water supply and drainage, sewage disposal and irrigation to cut off medium flow.
Advantages
1. The craft of resin sand molding makes the inside and outside bodies of BS5163 resilient gate valve very smooth, which are look attractive and comfortable after epoxy coating.
2. The use of vulcanized rubber to ensure accurate geometry and the connection of rubber and ductile iron discs is firm to gain stable performance of sealing.
3. Pressure test to every single valve can ensure 100% products without leakage after sales and all these BS 5163 Resilient Gate Valves are granted 3 years' warranty.
Components:
| NO. | PARTS | MATERIAL |
| 1 | Body | GGG50 |
| 2 | Disc | GGG50+EPDM |
| 3 | Stem Nut | Brass/GGG50 |
| 4 | Stem | 2Cr13 |
| 5 | Gasket | EPDM |
| 6 | Bonnet | GGG50 |
| 7 | Locking Ring | Carbon steel |
| 8 | Gasket | EPDM |
| 9 | Gland | GGG50 |
| 10 | O-ring | EPDM |
| 11 | Hand Wheel | GGG50 |
| 12 | Washer | SS201 |
| 13 | Bolt | SS201 |

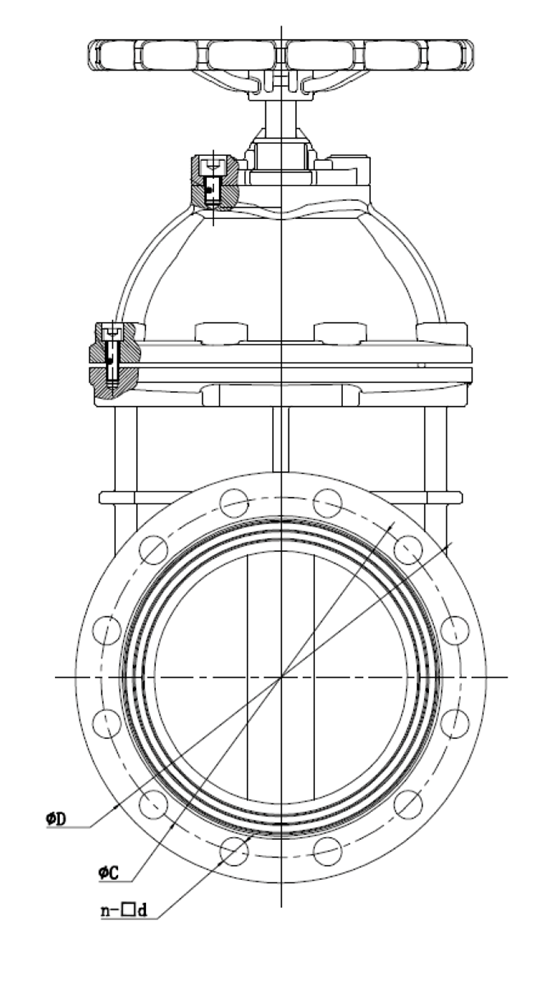

Dimension(40-600)
| DN | L | D | C | H | b | f | n-Φd | |||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | |||||
| 40 | 178 | 150 | 110 | 310 | 19 | 2 | 4-19 | |||
| 50 | 178 | 160 | 125 | 310 | 19 | 2 | 4-19 | |||
| 65 | 190 | 180 | 145 | 355 | 20 | 3 | 4-19 | |||
| 80 | 203 | 195 | 160 | 395 | 20 | 3 | 8-19 | |||
| 100 | 229 | 215 | 180 | 440 | 22 | 3 | 8-19 | |||
| 125 | 254 | 245 | 210 | 500 | 22 | 3 | 8-19 | |||
| 150 | 267 | 280 | 240 | 575 | 22 | 3 | 8-23 | |||
| 200 | 292 | 335 | 295 | 720 | 24 | 3 | 12-23 | |||
| 250 | 330 | 405 | 350 | 355 | 835 | 24 | 3 | 12-23 | 12-28 | |
| 300 | 356 | 460 | 400 | 410 | 910 | 25 | 3 | 12-23 | 12-28 | |
| 350 | 381 | 520 | 460 | 470 | 1080 | 28 | 4 | 16-23 | 16-28 | |
| 400 | 406 | 580 | 515 | 525 | 1190 | 29 | 5 | 16-28 | 16-31 | |
| 450 | 432 | 615 | 640 | 565 | 585 | 1320 | 30 | 5 | 20-28 | 20-31 |
| 500 | 457 | 670 | 715 | 620 | 650 | 1475 | 31 | 5 | 20-28 | 20-34 |
| 600 | 508 | 780 | 840 | 725 | 770 | 1685 | 33 | 6 | 20-31 | 20-37 |
